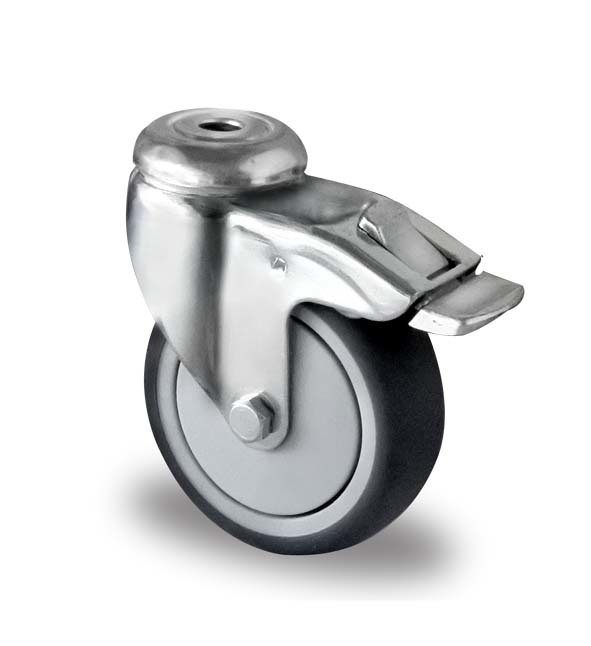

50mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH050PT001 Wheel diameter:50mm Mounting size：11mm Wheel core：Polypropylene（PP） Bracket opening：22mm Wheel width:19mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M6 Total height:70mm Wheel bearing: Plain bearing Load capacity:50kg

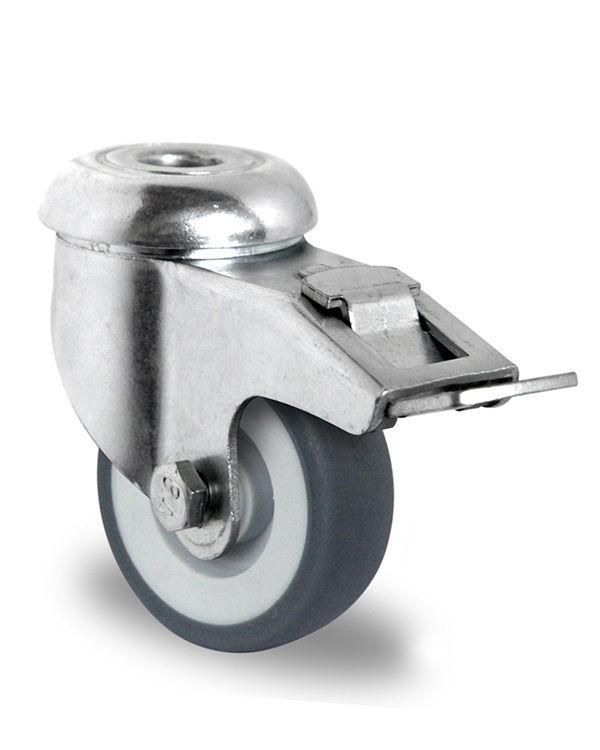

50mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH050PT003 Wheel diameter:50mm Mounting size：11mm Wheel core：Polypropylene（PP） Bracket opening：22mm Wheel width:19mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M6 Total height:70mm Wheel bearing:Single ball bearing Load capacity:50kg

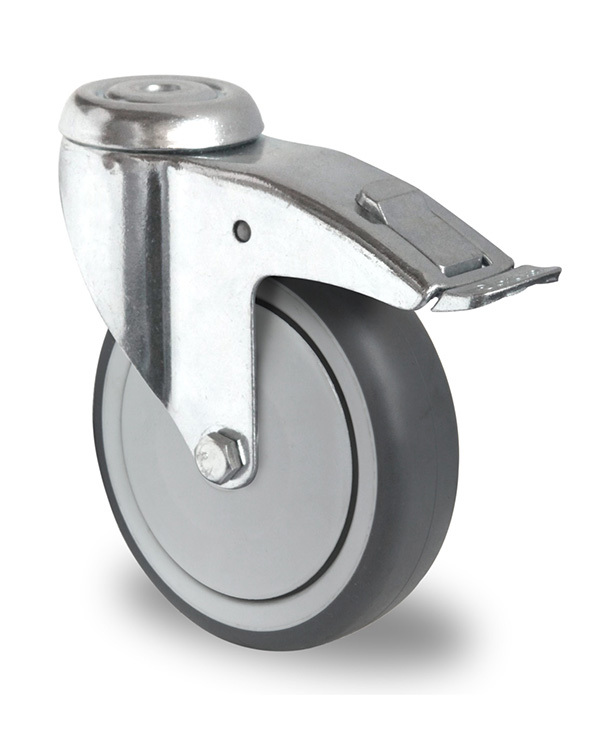

150mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH150PT005 Wheel diameter:150mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:185mm Wheel bearing: Plain bearing Load capacity:100kg

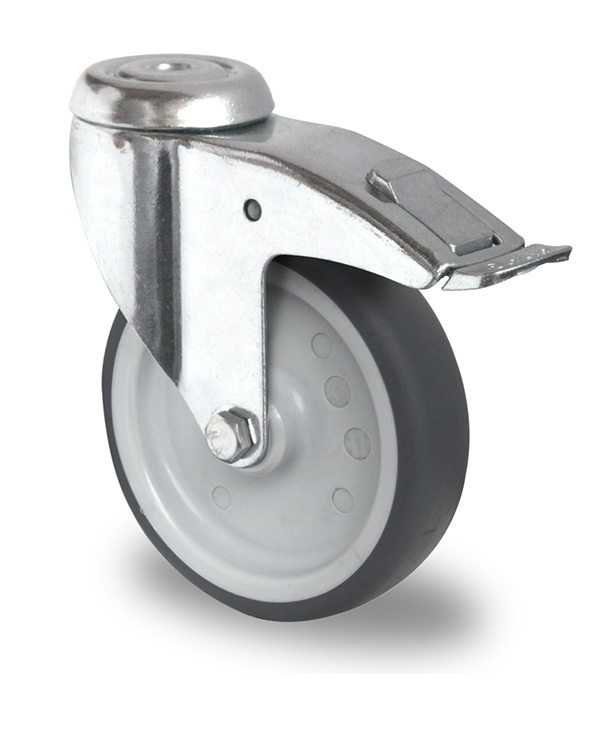

150mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH150PT005 Wheel diameter:150mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:135mm Wheel bearing:Single ball bearing Load capacity:100kg

125mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH125PT002 Wheel diameter:125mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:160mm Wheel bearing: Plain bearing Load capacity:100kg

125mm bolt hole with brake Ball TPR Wheel

Description：Bolt hole with total brake BD code.：2BAH125PT005 Wheel diameter:125mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:160mm Wheel bearing:Single ball bearing Load capacity:100kg

100mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH100PT002 Wheel diameter:100mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:135mm Wheel bearing: Plain bearing Load capacity:100kg

100mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH100PT005 Wheel diameter:100mm Mounting size：11mm/13mm Wheel core：Polypropylene（PP） Bracket opening：36mm Wheel width:32mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M8 Total height:135mm Wheel bearing:Single ball bearing Load capacity:100kg

75mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH075PT001 Wheel diameter:75mm Mounting size：11mm Wheel core：Polypropylene（PP） Bracket opening：28mm Wheel width:25mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M6 Total height:100mm Wheel bearing: Plain bearing Load capacity:75kg

75mm bolt hole with brake TPR castor

Description：Bolt hole with total brake BD code.：2BAH075PT003 Wheel diameter:75mm Mounting size：11mm Wheel core：Polypropylene（PP） Bracket opening：28mm Wheel width:25mm Tread: Thermoplastic rubber (TPR 95A) Wheel screw:M6 Total height:100mm Wheel bearing:Single ball bearing Load capacity:75kg
